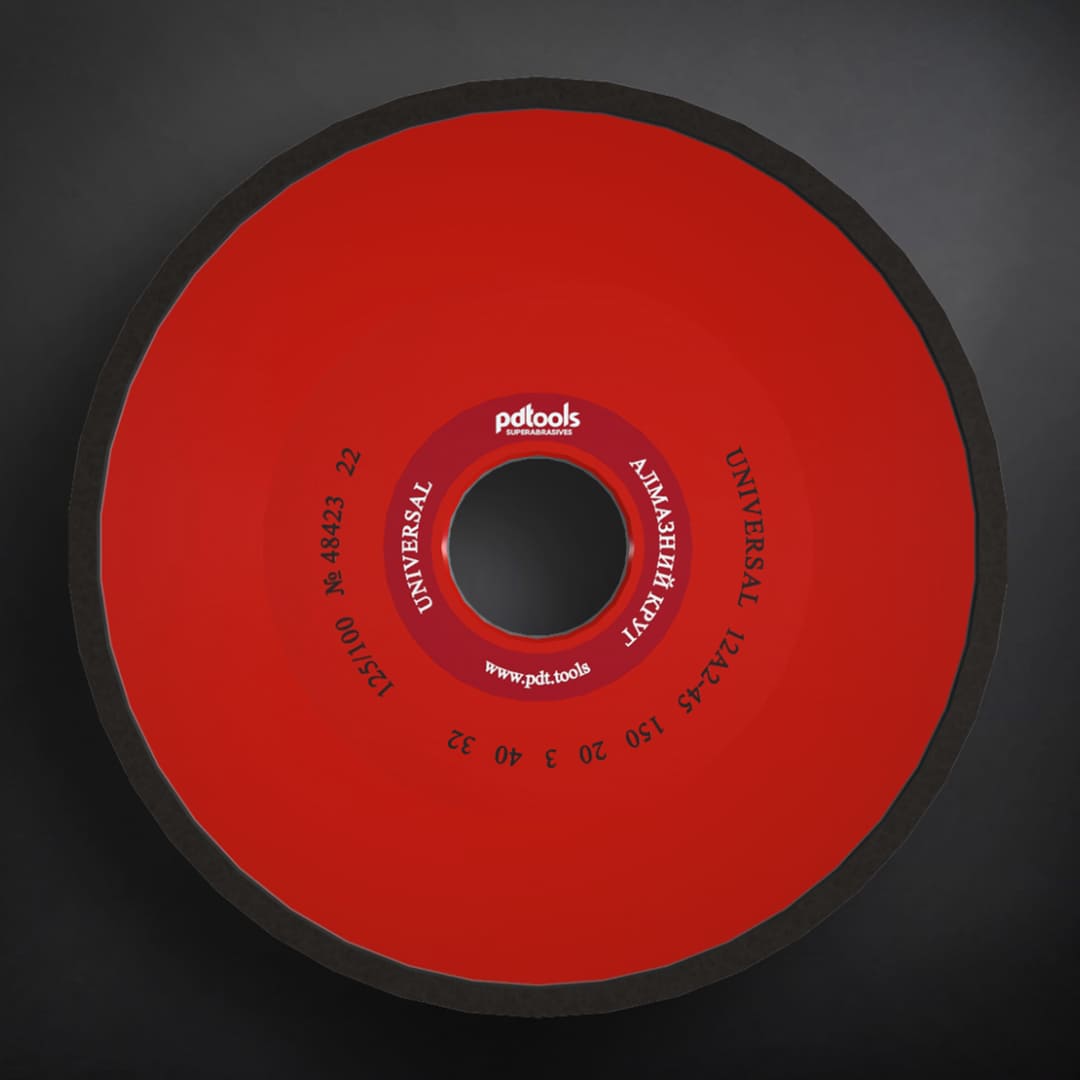

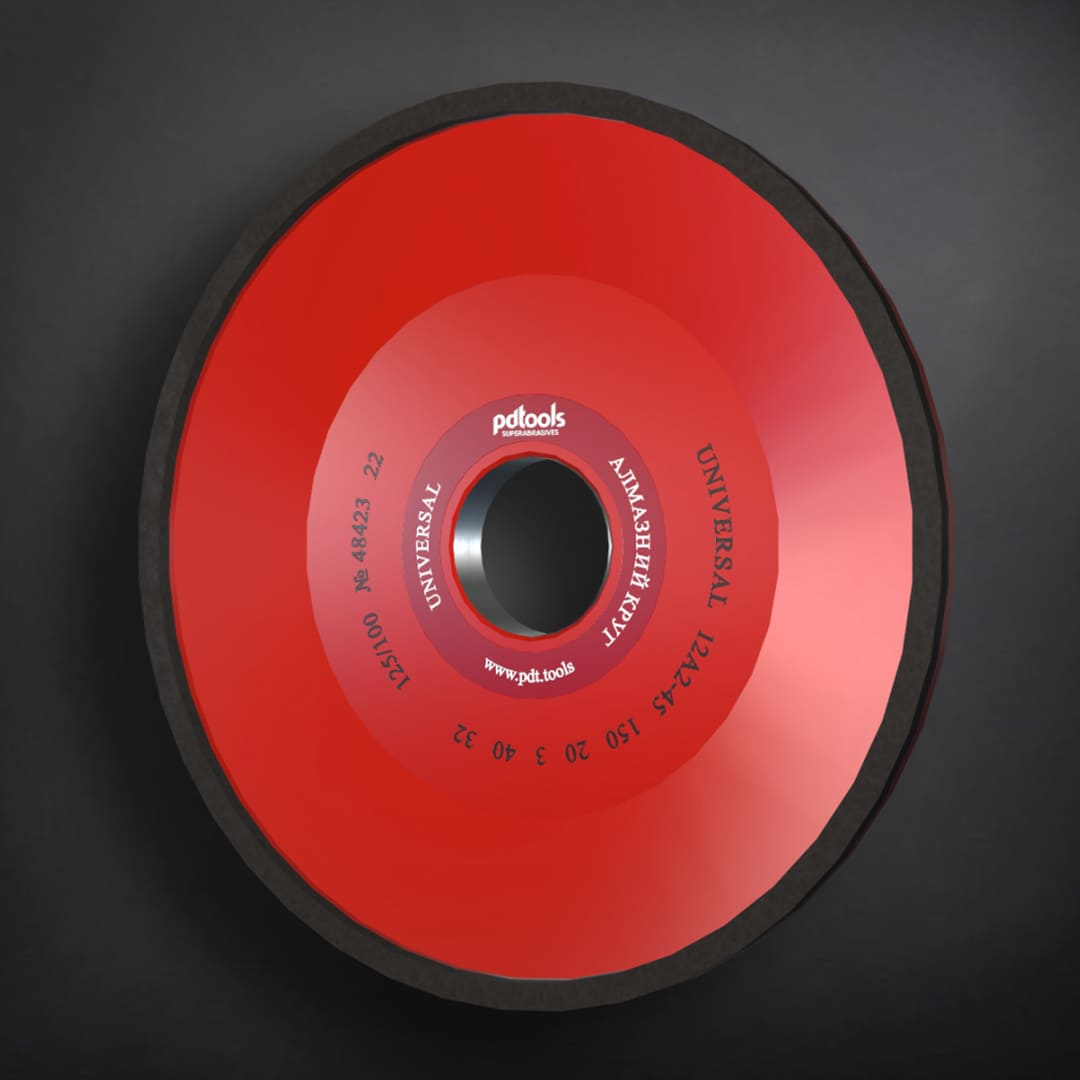

Diamond grinding wheel 12A2-45 UNIVERSAL with layer thickness 10
Diamond grinding wheel 12A2-45 UNIVERSAL with layer thickness 10
Diamond grinding wheel 12A2-45 UNIVERSAL with layer thickness 10
SKU:
SKU:
4-0040 Specifications:
Diameter:
150 мм
Grit:
125/100
Material:
Hardened steels
Hard alloys
Form:
12A2-45
Layer height:
3
Landing hole:
32
$30.00
BUY in 1 CLICK
100
Description:
Grinding wheel 12A2-45 UNIVERSAL.
A new line of high-performance diamond tools UNIVERSAL for mechanical engineering, tool and woodworking industries.
Type of sharpening, finishing operation: steel spiral drills, drills with a shank and carbide with a diameter of up to 10 mm.
- Sharpening and finishing of multi-blade carbide tools with straight and spiral teeth on the front surface of cutters, drills, broaches, reamers, etc.
- Used for processing the surfaces of flat parts, semiconductors, ceramic materials, precious stones, quartz and others.
- Diamond-bearing layer of diamond grinding powders and micropowders on organic binders.
Advantages over abrasive wheels:
- Wheel service life is 5-10 times longer.
- Higher quality of sharpening of the cutting edge of the drill, cutter, knife and, as a result, increased stability by 5-10 times.
- No scorching of the treated surface due to reduced force intensity of the process.
- Metal removal rate is 2-3 times higher.
- Possibility of obtaining a higher quality treated surface.
- Reduction of dustiness at the workplace with abrasive dust, reduction of noise, vibration.
- Possibility of processing materials that are not processed by abrasive wheels: hard ceramics, PCD, PCVN plates, abrasive ceramic materials.
